Getting Started with WinGate as a Proxy Server on Windows 10

WinGate stands out as a flexible software solution for managing proxy configurations and network access on Windows systems. It provides granular control over internet usage, making it a solid choice for both home networks and more complex enterprise environments. This guide will walk you through WinGate's core capabilities and show you how to configure it, potentially using reliable proxy services like those offered by Evomi to manage your connections.

WinGate Explained: Proxy Power for Windows 10

From the moment you install it, WinGate feels engineered for those who manage networks. It's particularly effective for medium to large setups, boasting a comprehensive feature set:

  • Centralized management of internet access for the entire network.

  • Customizable access policies for fine-grained user control.

  • Real-time monitoring of network activity with detailed logs per user.

  • Integrated email server functionality (for both internet and local networks).

  • Tools for network diagnostics and generating reports.

But wait, there's more! WinGate also includes support for standard HTTP and SOCKS proxies, an integrated firewall, and the ability to expand its functionality through plugins. While the initial setup might appear complex, extensive documentation is available, allowing users of all levels to get comfortable with its features over time.

Setting Up WinGate Proxy Server: A Step-by-Step Guide

First things first: download the latest version of WinGate Proxy Server and run the installer. During installation, you'll be asked to provide an email address for receiving administrative alerts.

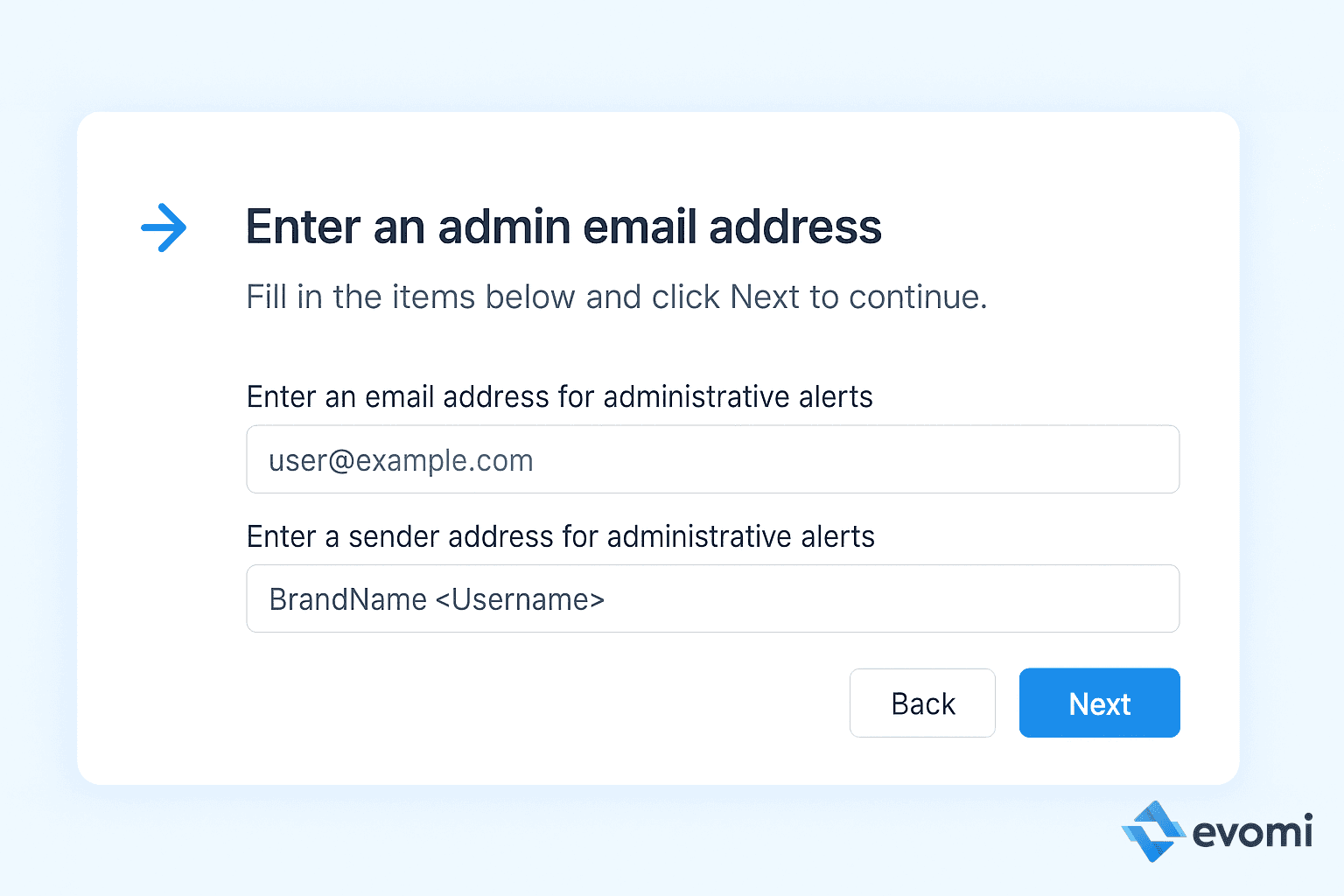

WinGate setup: entering admin email for alerts

After the installation completes, a system reboot is required. Once Windows is back up, you should see the WinGate icon in your system's notification area. Right-click this icon and choose WinGate Management.

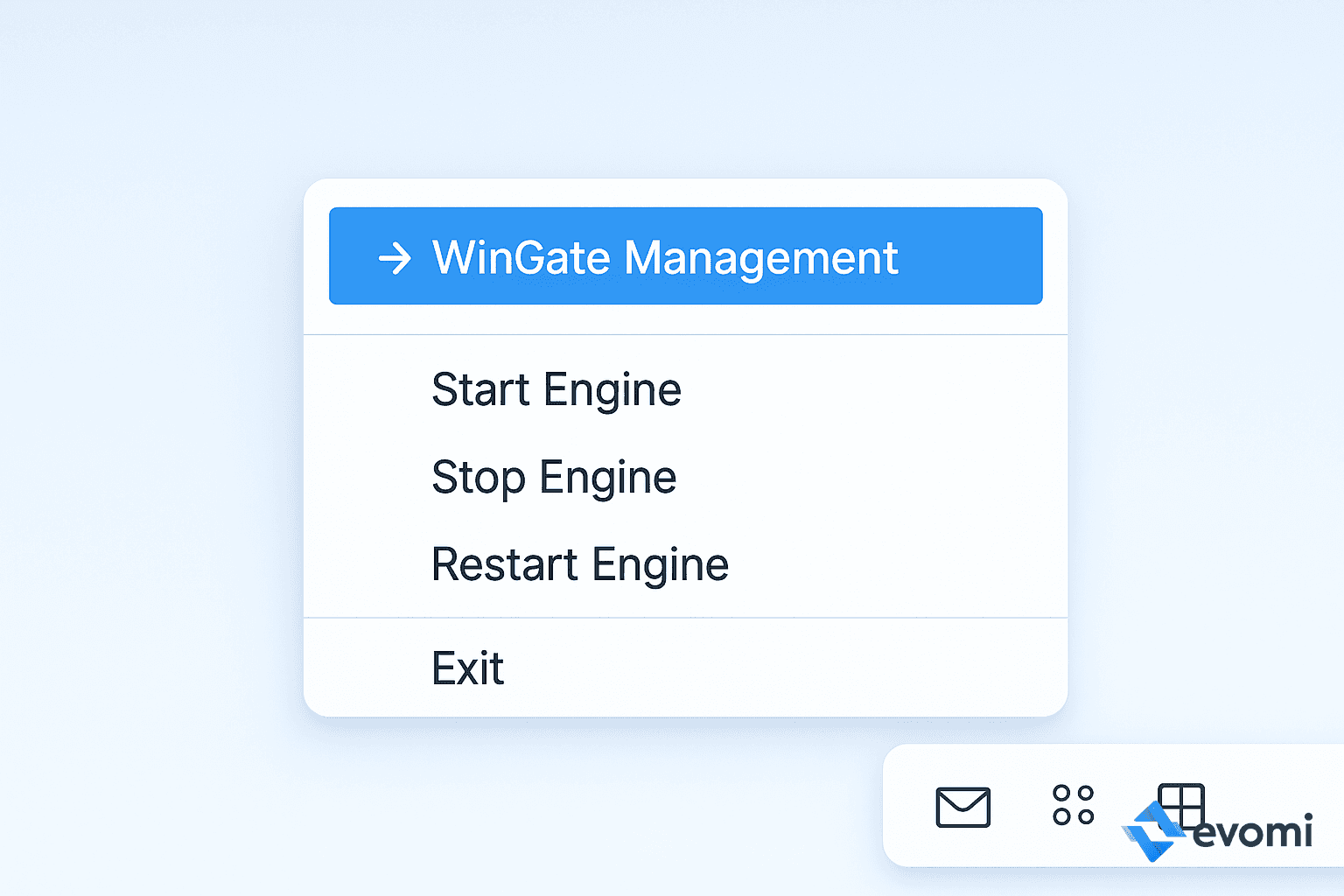

Accessing WinGate Management from the notification area

This action opens the WinGate Management console. Initially, it might look a bit sparse as it displays the modules currently managed by the WinGate engine.

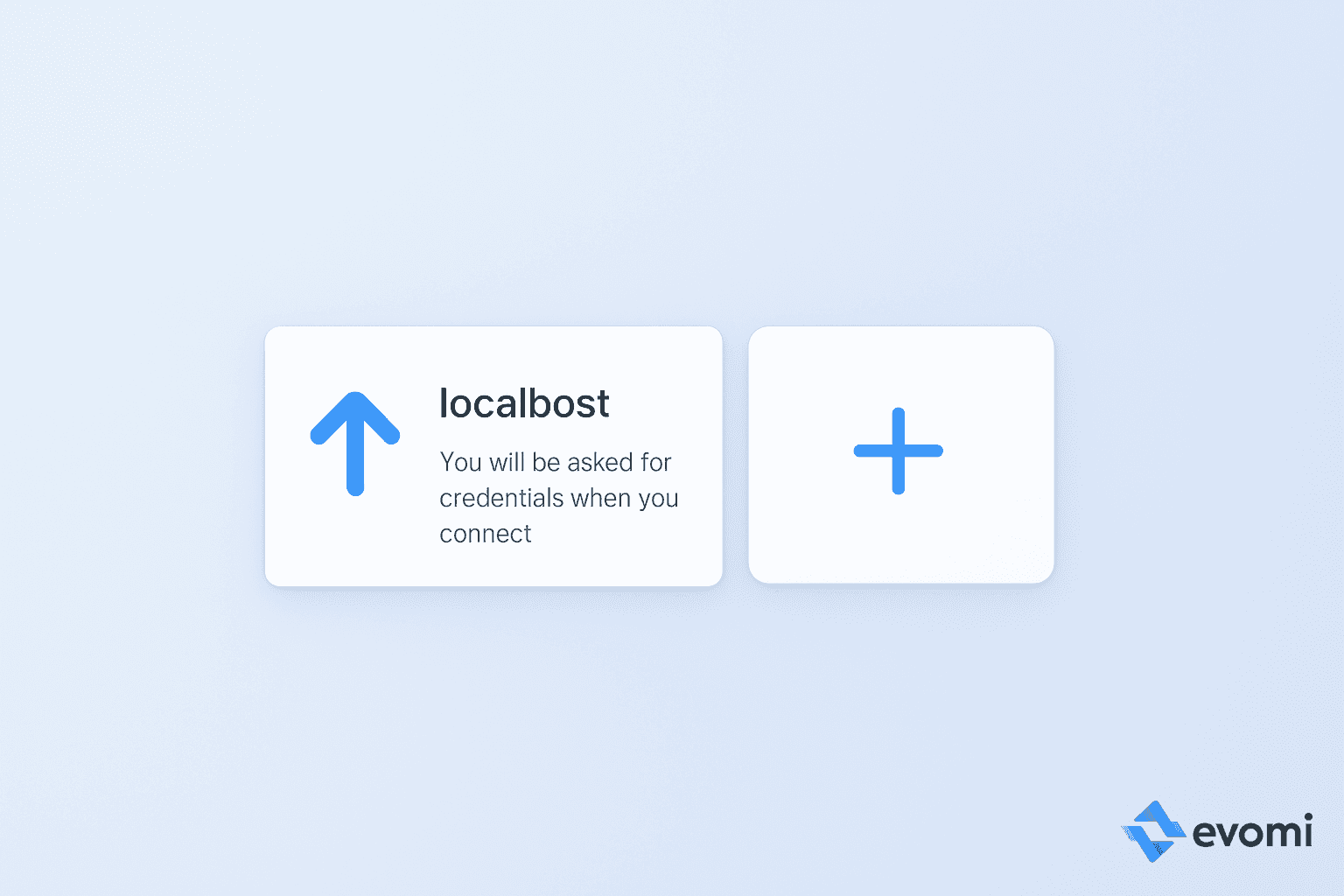

The main WinGate Management console window

To begin the configuration, click on the localhost entry. WinGate will then load necessary modules and perform a license check. You can utilize their free 30-day trial period to evaluate the software. Following the license verification, WinGate restarts and prompts you to configure a user database for authentication and management – a crucial step for proper operation.

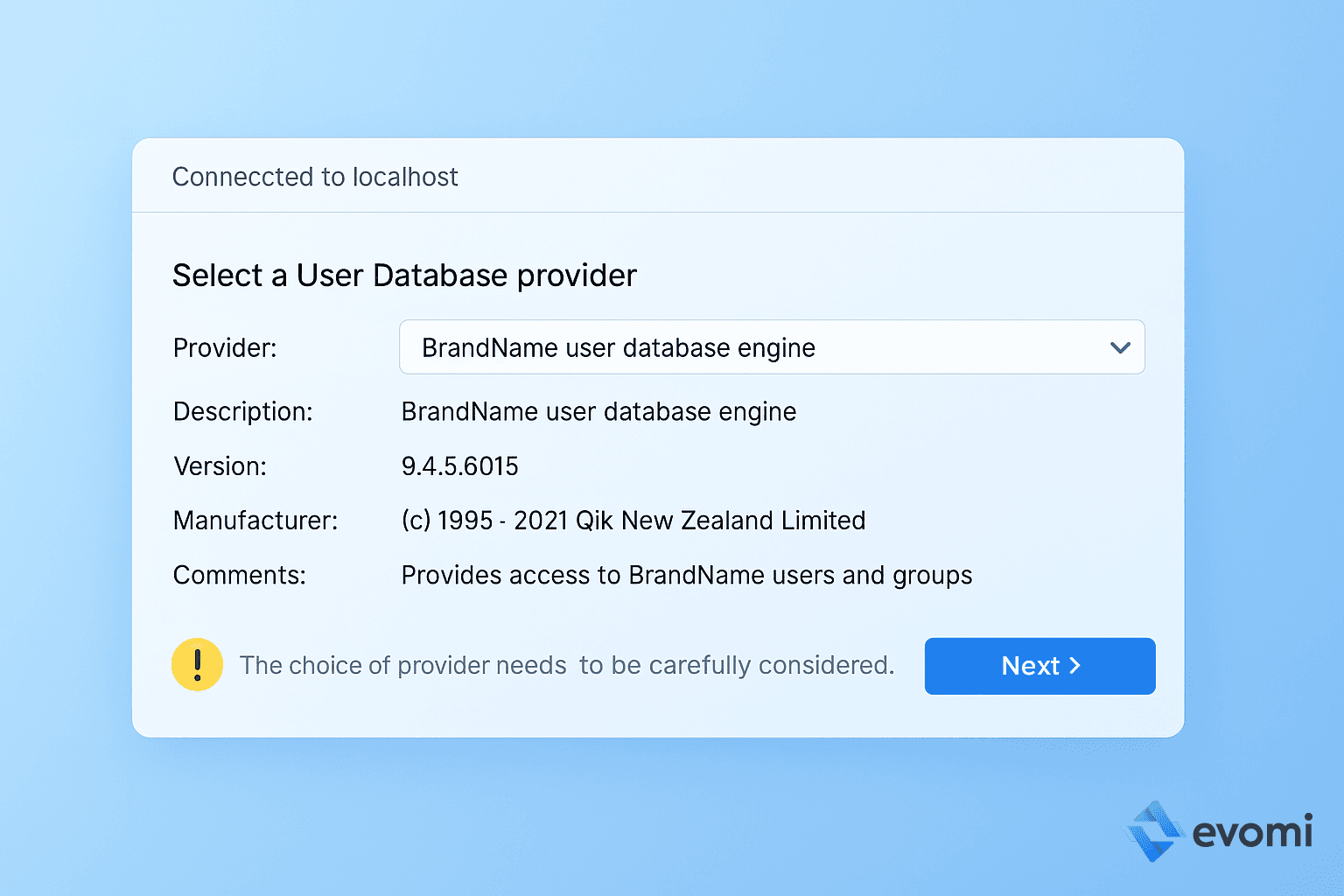

Configuring the user database source in WinGate

Choose the appropriate option for your setup and click Next. WinGate will then require an account with administrative privileges. Select the correct option and confirm by clicking OK.

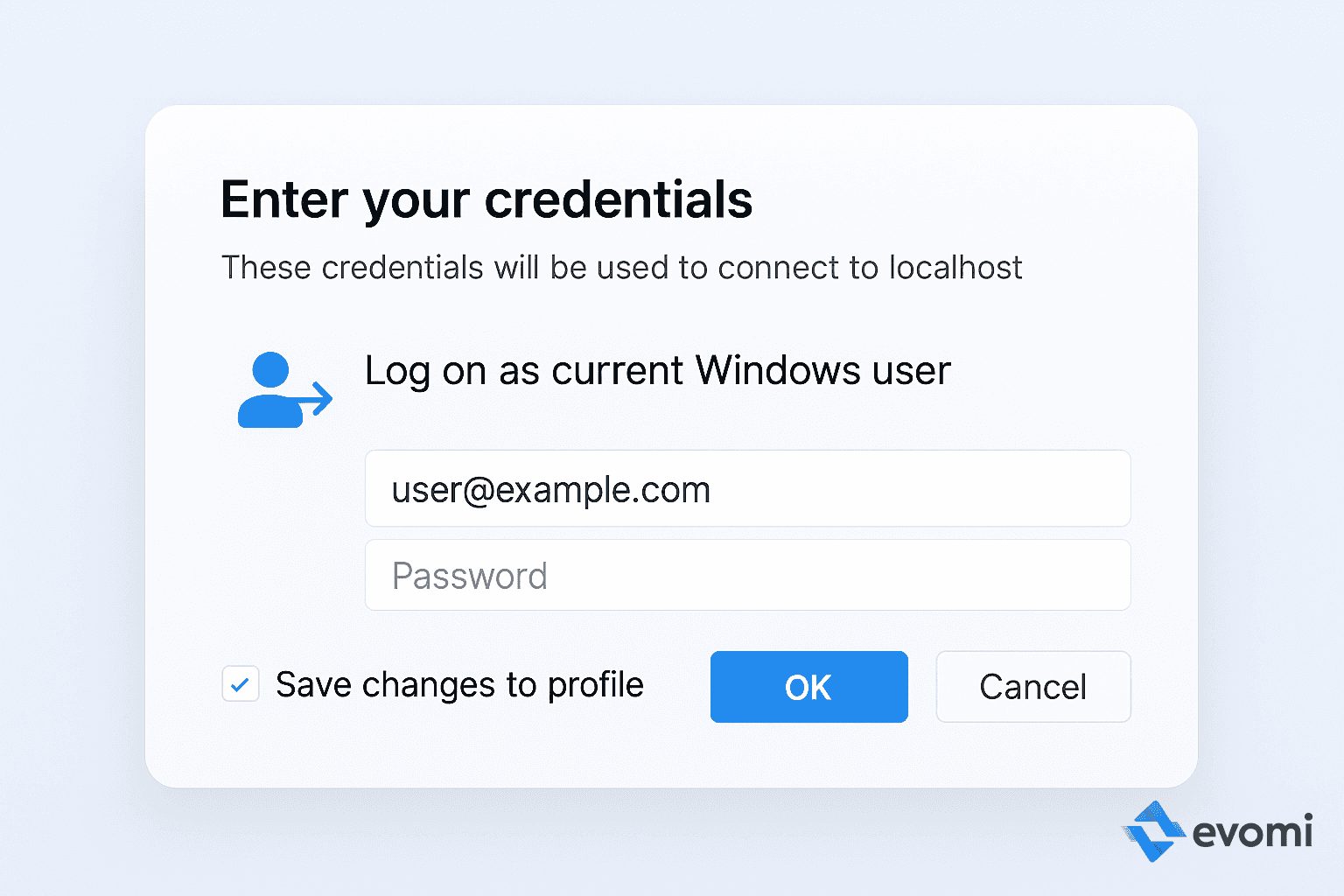

Selecting an administrator account for WinGate

You'll arrive at the main welcome page, with a navigation panel on the left displaying various configuration options. Our primary goal here is setting up a proxy. Select Services from the left-hand menu.

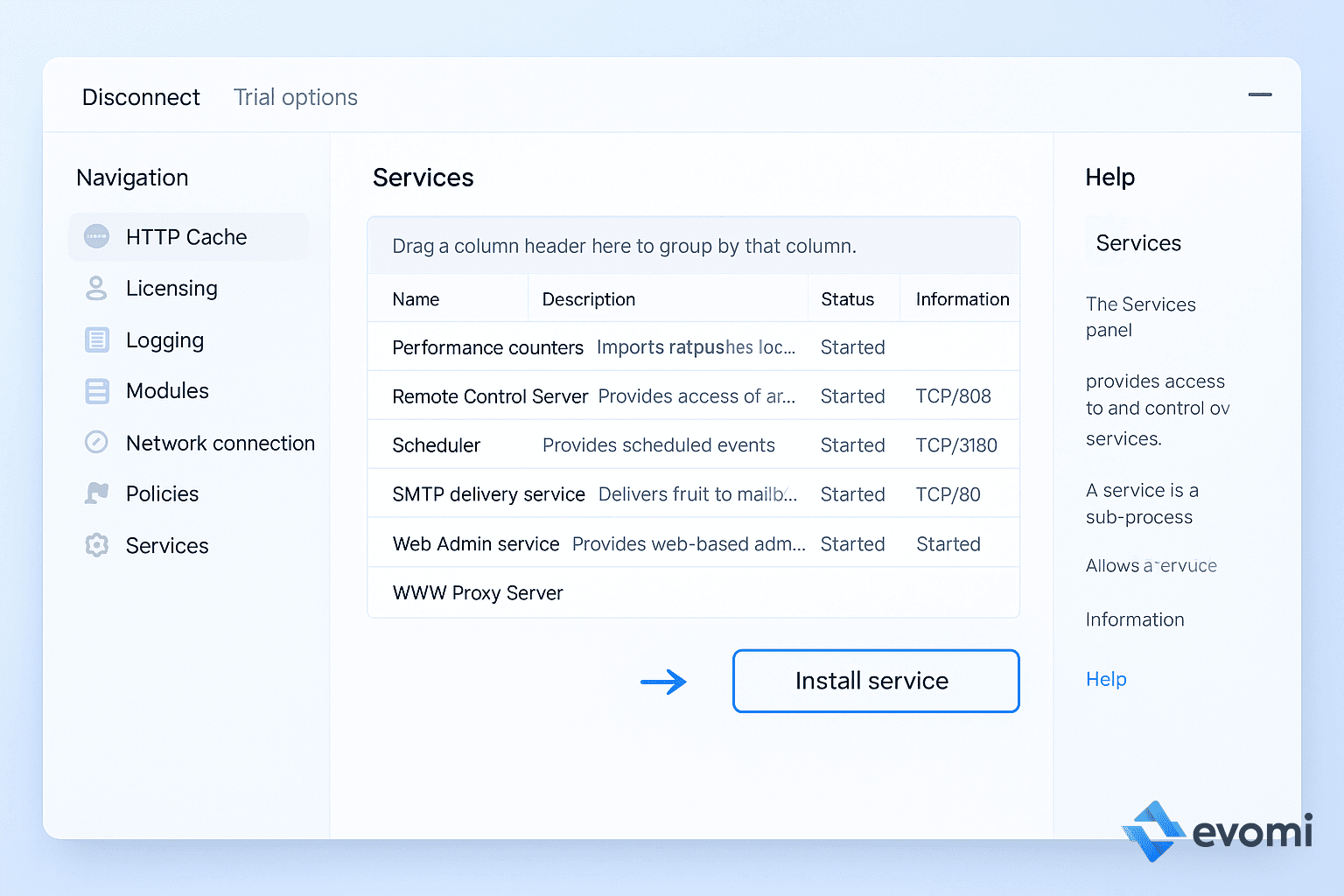

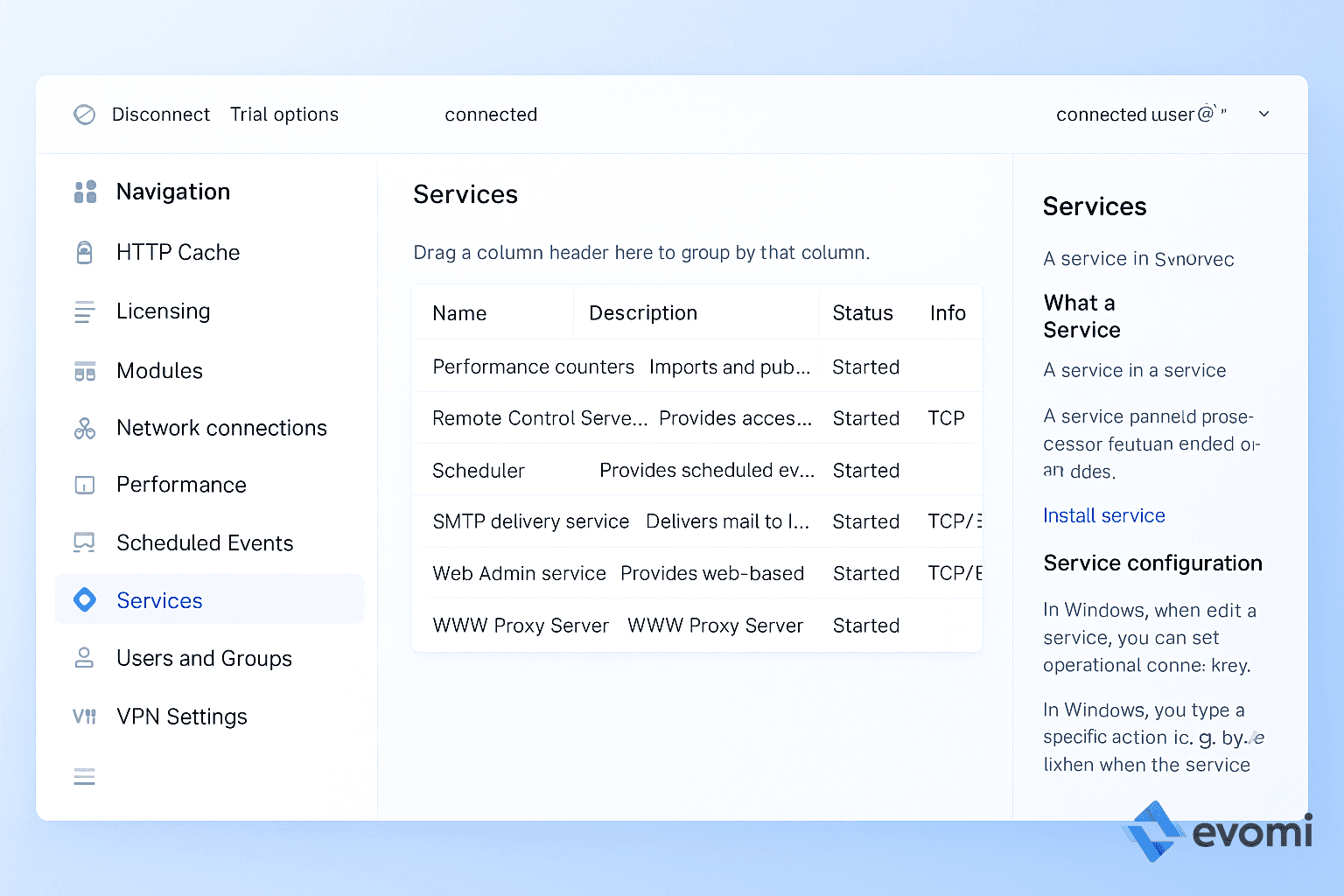

Navigating to the Services section in WinGate

In the main area on the right, right-click within the empty space and select Install service.

Initiating the installation of a new service in WinGate

From the list presented, choose WWW Proxy Service and click Next.

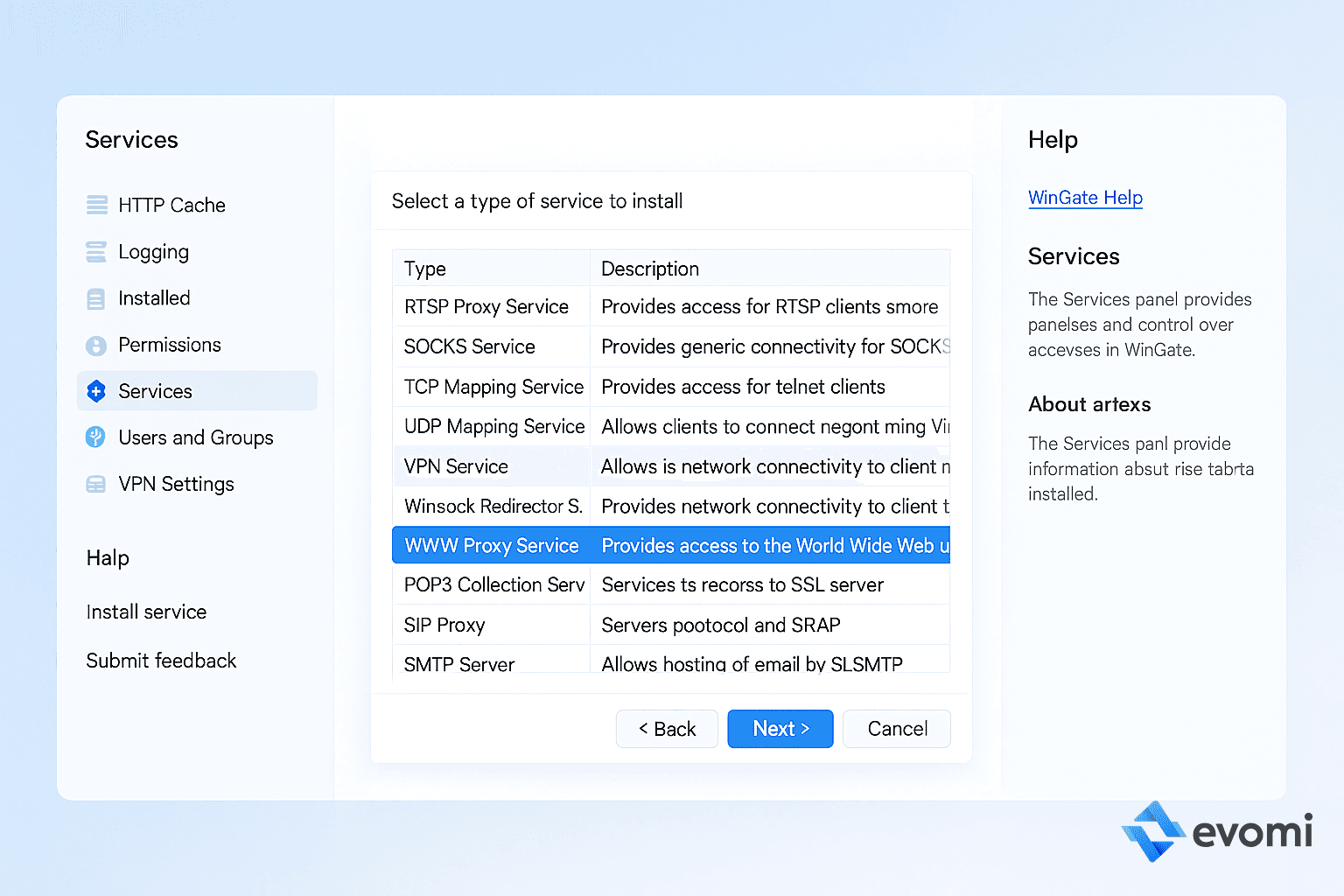

Selecting the WWW Proxy Service for installation

Assign a name to your new service and click Finish. This opens the service properties window. Navigate to the Bindings tab. Clear any existing bindings and then click the Add button.

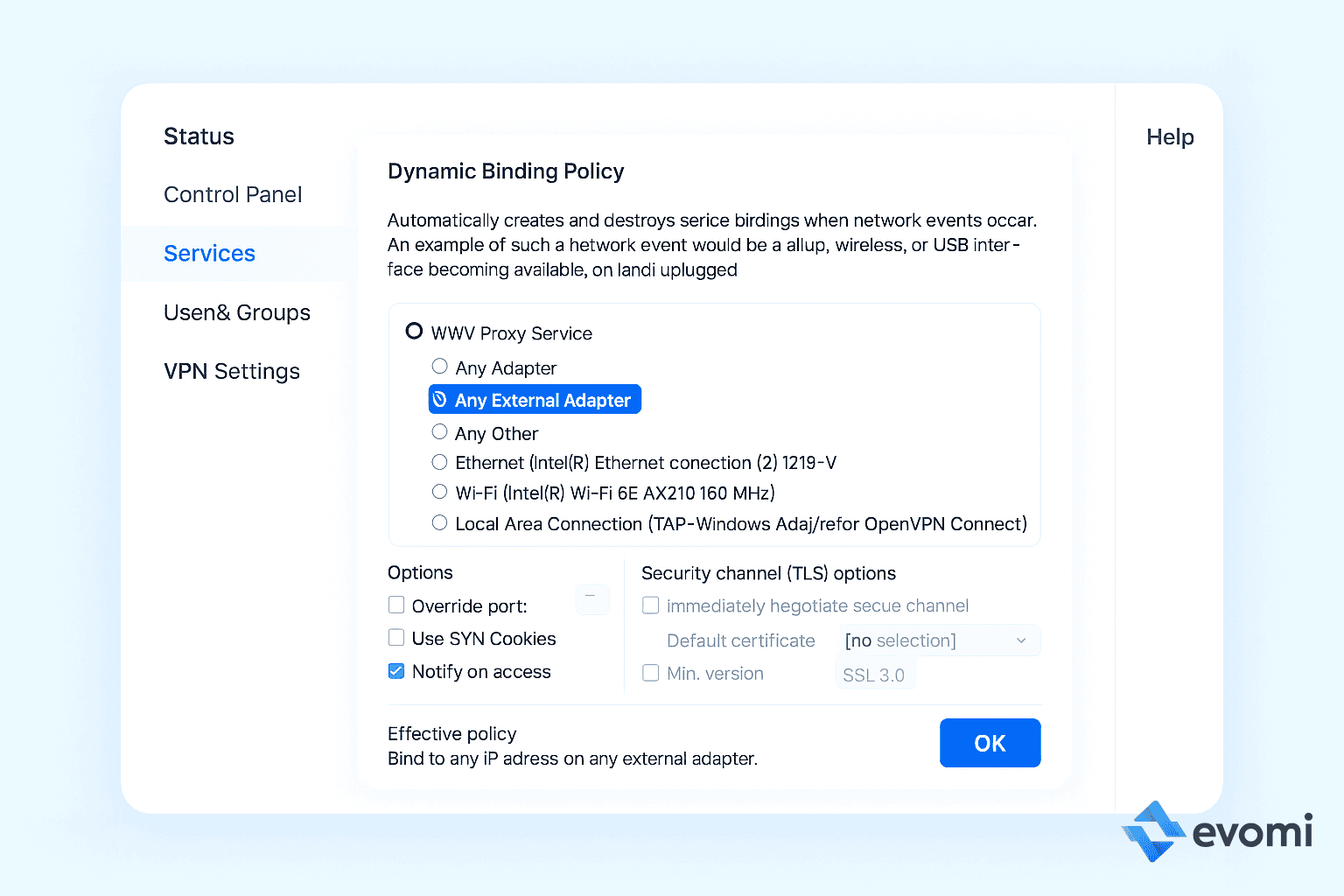

Configuring service bindings in WinGate

Select Any External Adapter from the options and click OK to apply this configuration.

Adding 'Any External Adapter' as a binding rule

Next, switch to the Connection tab. Check the box labelled Connect via upstream proxy. This is where you'll integrate your external proxy service, such as Evomi residential proxies.

You'll need your proxy credentials from your provider's dashboard. For example, using Evomi's residential proxies, you might want to route traffic through various locations. You would typically need the following details:

  • Proxy Host/Server Address: e.g., rp.evomi.com

  • Proxy Port: e.g., 1000 for HTTP or 1001 for HTTPS

  • Proxy Username

  • Proxy Password

Enter these details into the corresponding fields in the WinGate connection settings window.

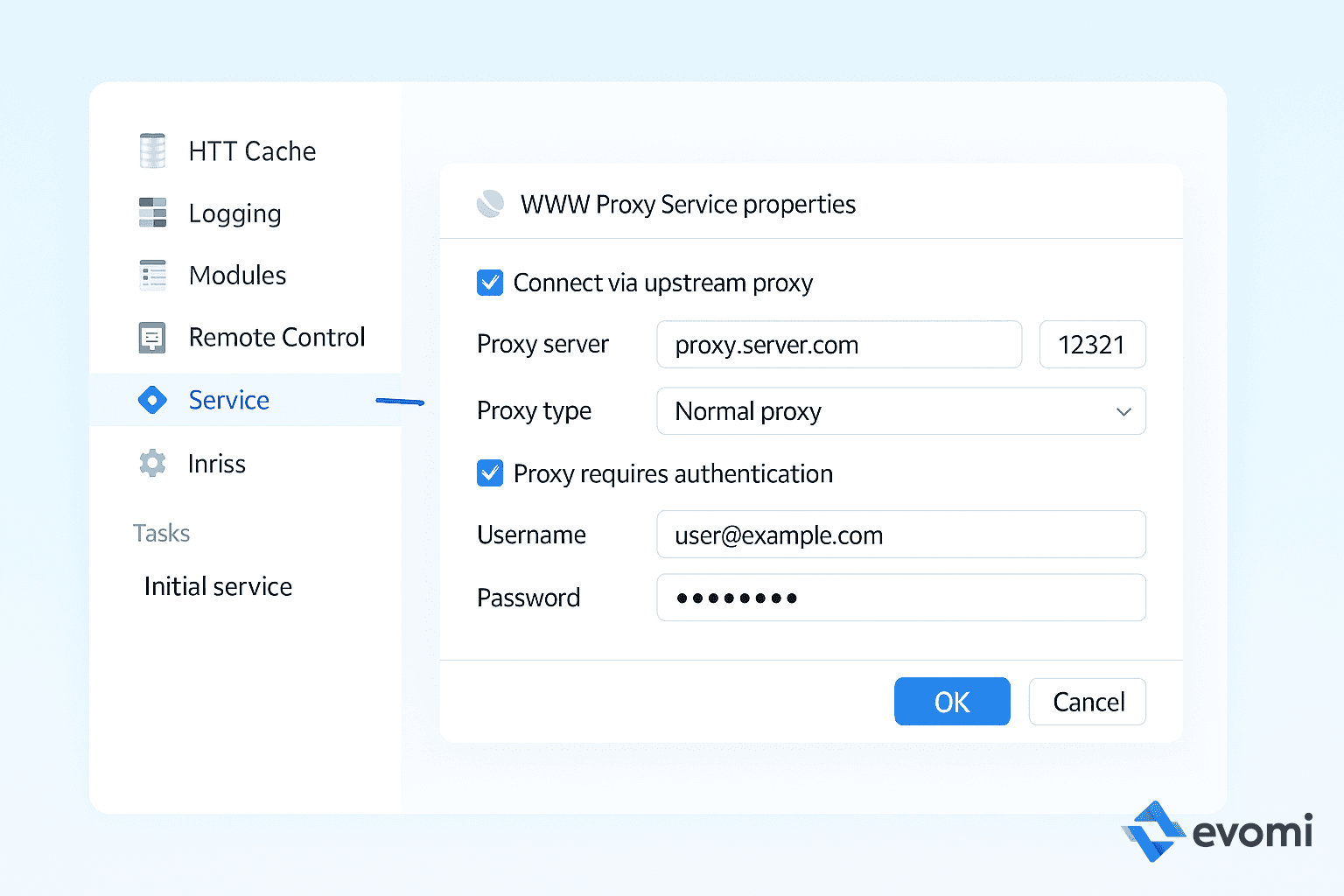

Configuring upstream proxy connection details in WinGate

Once you've entered your proxy information, click Apply to save the configuration. Now, traffic from client devices connected through this WinGate setup will be routed via the specified upstream proxy. To verify everything is working as expected, you can use an online tool like Evomi's IP Geolocation Checker to see the IP address websites detect for your connection.

Boosting Security and Control with WinGate

WinGate is compatible with various internet connection types and scales to support numerous simultaneous users. Its utility isn't confined to just web browsing; thanks to its support for protocols like FTP and SSL, you can configure it for diverse applications requiring internet access.

Beyond network and internet management, WinGate offers valuable security features. Its built-in firewall inspects network packets, providing a layer of defense. Furthermore, WinGate's capabilities can be extended with plugins for tasks like virus scanning of incoming data or advanced web content filtering.

Administrators gain powerful tools for user management and defining precise internet access rules. The software includes real-time activity monitoring, a detailed history viewer, and auditing features for accountability. These combined features make WinGate a suitable choice for businesses, educational institutions, and organizations needing robust internet oversight and control.

WinGate Versions: For Different Needs

WinGate comes in three main editions: Standard, Professional, and Enterprise. While features vary across editions, they all provide foundational capabilities:

  • HTTP and SOCKS proxy support

  • Email services integration

  • HTTP caching for performance

  • Firewall / Network Address Translation (NAT)

  • Remote administration and task scheduling

  • System notifications

  • Timeline view of activity

The Standard edition has limitations on certain elements like notification plans and cache volumes. The Professional version increases these limits and adds support for Active Directory integration, detailed W3C logging, scripting capabilities, and more. The Enterprise edition further expands on this with features like HTTP cache rules, VPN gateway support, custom DHCP options, and web-based administration. For detailed comparisons, refer to the official WinGate pricing information page.
